Custom walk-in fume hood designed for large laboratory equipment and safe removal of hazardous fumes.
Walk-In Access
Large Equipment
Efficient Exhaust
Custom Sizes
Overview
Walk-In Fume Hood is an oversized full-access enclosed ventilation workstation, specially designed for large-scale lab equipment, pilot synthesis reactors, bulk raw material pretreatment and full-size device testing. It provides a fully enclosed negative pressure operating space to capture hazardous chemical vapors, dust and solvent exhaust, preventing cross-contamination and protecting operators from toxic exposure.
Adopting fully customizable modular panel structure, the overall size, liner material, door form, sash style and air control system can be adjusted freely. It complies with ASHRAE 110, NFPA 45 and ISO lab safety standards, compatible with VAV / CAV variable air volume control, AHU fresh air makeup and waste gas treatment linkage systems.
Applicable for pilot chemical workshops, university large teaching labs, pharmaceutical intermediate synthesis workshops, battery testing labs and environmental hazardous waste treatment stations. It can be single independent unit or combined with buffer airlock to form negative pressure full-enclosed experimental area.
The system can be configured with
Exhaust Blower
Airflow Monitor
VAV or CAV Control
Utility Services
Explosion-Proof Lighting
Chemical-Resistant Liner
Safety Alarm System
Suitable for
Chemical Laboratories
Pharmaceutical Laboratories
Industrial Laboratories
Pilot Plants
Research Facilities
Production Workshops
Specifications
|
Parameter Category |
Detailed Specs |
|
Internal Working Size |
Customizable full range width/depth/heightCommon standard size: 2400/3000/3600mm width × 1500/1800mm depth |
|
Outer Cabinet Material |
Standard: 1.2mm cold rolled steel with epoxy anti-corrosion coatingOptional upgrade: PP integrated cabinet / 304 stainless steel cabinet |
|
Inner Liner Material |
Standard: 5mm epoxy resin linerOptional upgrade: PP liner / 316 stainless steel liner for heavy corrosion |
|
Design Face Velocity |
0.4–0.6 m/s constant stable negative pressure airflow0.3–0.8 m/s adjustable for special toxic negative pressure projects |
|
Air Volume Adjustment Range |
800–5000 m³/h, matched with variable frequency exhaust fan |
|
Door & Sash Type |
Full-height vertical lifting glass sash (standard)Optional: Single/double airtight walk-in swing door, PDLC smart dimming observation window |
|
Control System |
Standard digital display control panelOptional upgrade: Touch screen PLC panel / BMS building linkage VAV system |
|
Fire Safety Standard |
Cabinet B1 fire resistance as standard; A-grade fireproof panel available for high fire risk workshops |
|
Bottom Countertop Thickness |
Standard 19mm epoxy resin countertopOptional 25mm thickened anti-impact countertop, PP anti-corrosion countertop |
|
Ventilation Ports |
Large-size double exhaust ports; PP / FRP anti-corrosion duct matching |
|
Power Supply |
AC220V 50Hz domestic standard; AC110V export version customizable |
Materials & Options
Outer Cabinet Materials
Cold Rolled Steel Cabinet
Core advantages: Stable structure, impact resistant, low cost, uniform anti-corrosion coating.
Typical application: General university teaching labs, routine organic synthesis pilot workshops.
PP Integrated Cabinet
Core advantages: Full acid & alkali resistance, zero rust, low dust falling, no metal corrosion dead corners.
Typical application: High-corrosion inorganic reagent pretreatment labs.
Stainless Steel 304/316 Cabinet
Core advantages: Easy high-temperature disinfection, moisture-proof, solvent vapor corrosion resistant.
Typical application: Biopharmaceutical sterile intermediate workshops, coastal humid labs.
Inner Liner Materials
compact laminate liner
Core advantages: Seamless integral forming, high temperature resistant, easy cleaning.
Typical application: Most standard walk-in fume hood projects.
pp liner panel
Core advantages: Excellent resistance to strong acid & alkali, no chemical reaction with corrosive leakage.
Typical application: Inorganic acid heavy corrosion experimental zones.

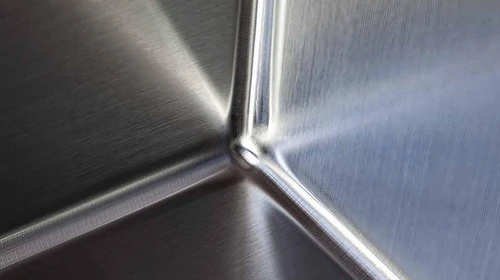

stainless steel liner
Core advantages: Anti-solvent explosion static, high temperature disinfection, long service life.
Typical application: Flammable solvent pilot synthesis, pharmaceutical sterile production zones.
Countertop Materials
Epoxy Resin Countertop
Core advantages: Seamless, high temperature resistant, anti-spill, standard configuration.
Typical application: General chemical pilot labs.
PP Countertop
Core advantages: Super strong acid & alkali resistance, match PP cabinet perfectly.
Typical application: Full PP anti-corrosion walk-in fume hood.
Stainless Steel 304 Countertop
Core advantages: Wear resistant, easy disinfection, anti-static, no dirt accumulation.
Typical application: Biotech sterile testing workshops.
Window material
Tempered Glass
Core advantages: Low dust shedding, anti-corrosion, easy disassembly for cleaning.
Typical application: All walk-in fume hood airflow balance systems.
Laminated Safety Glass
Core advantages: Flush installation, no protruding collision edges, easy disinfection.
Typical application: Walk-in airtight access doors & full-height glass sash.
Polycarbonate
Core advantages: Flush installation, no protruding collision edges, easy disinfection.
Typical application: Walk-in airtight access doors & full-height glass sash.
Hardware & Handles
Sash Guide Rail
Guide Rail

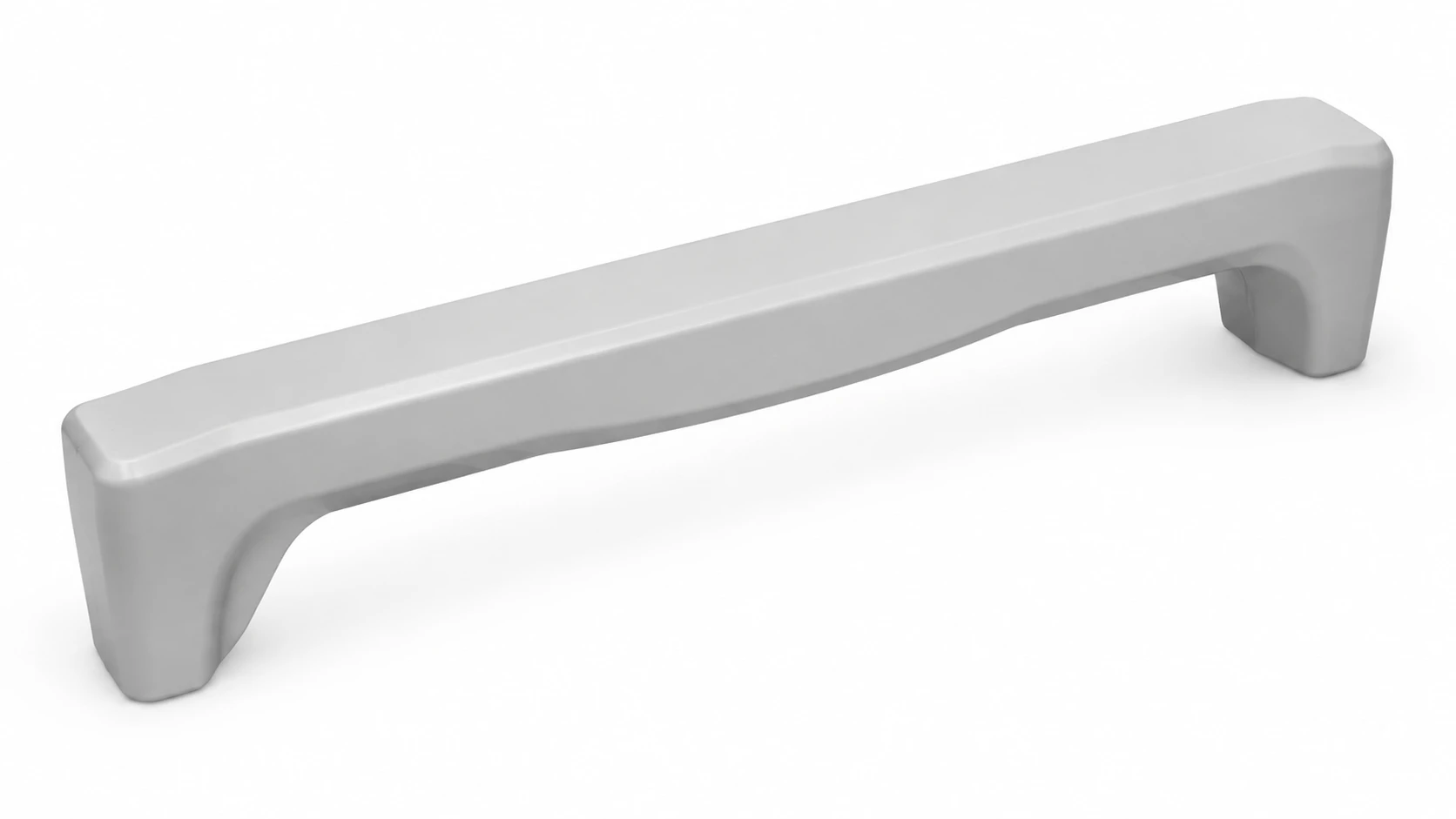

PVC Sash Handle

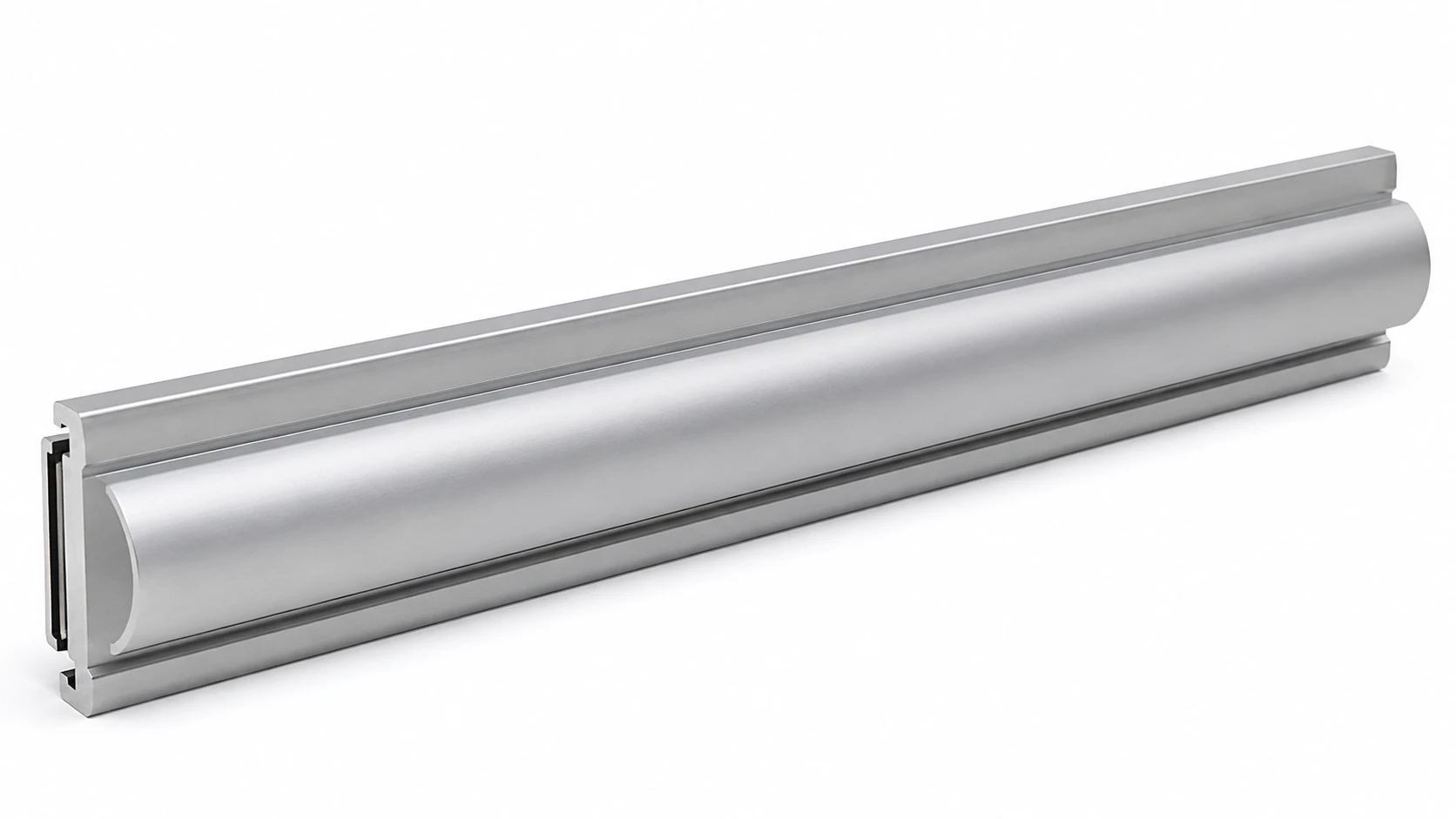

Aluminum Profile Handle

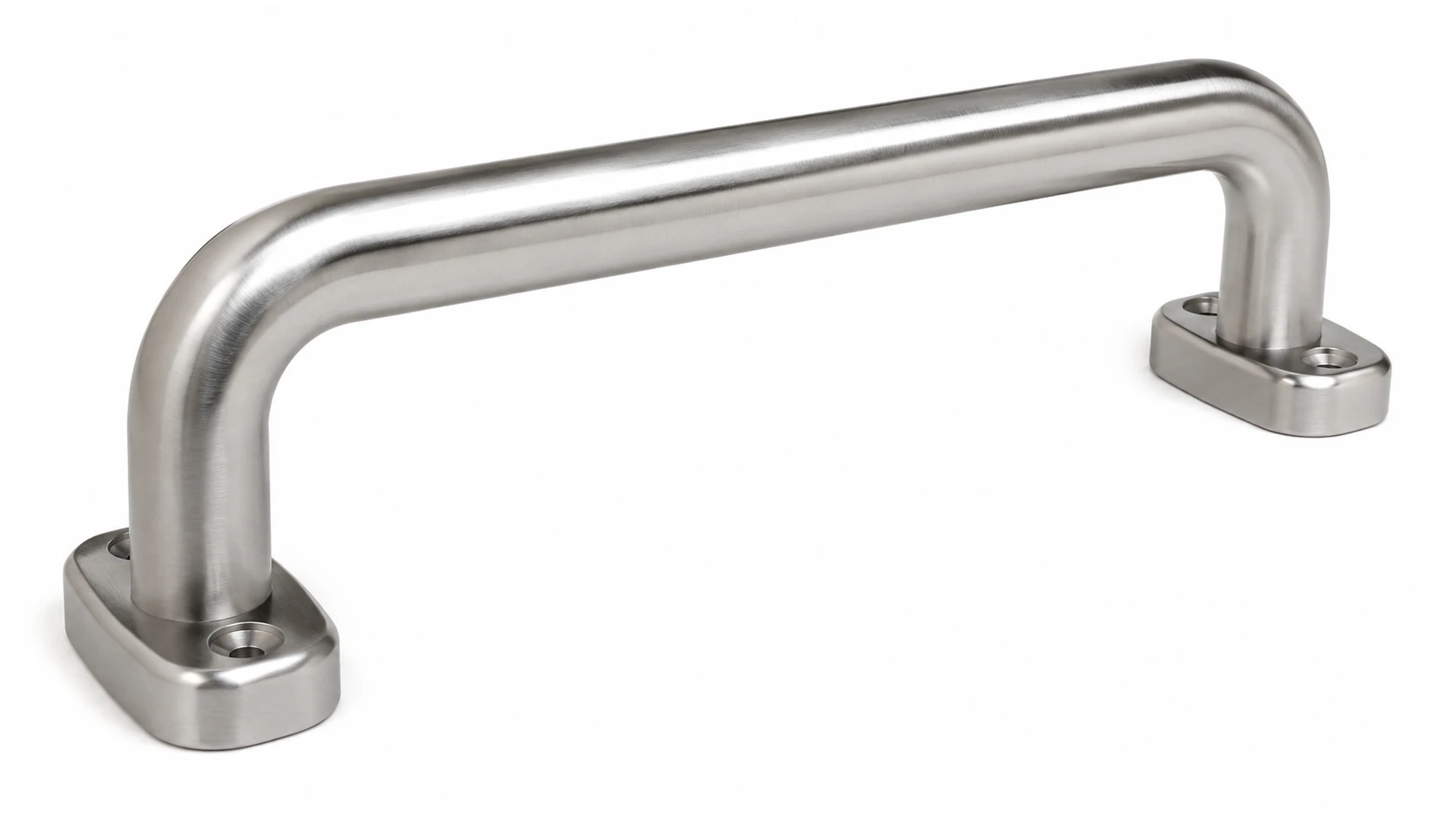

Stainless Steel Pull Handle

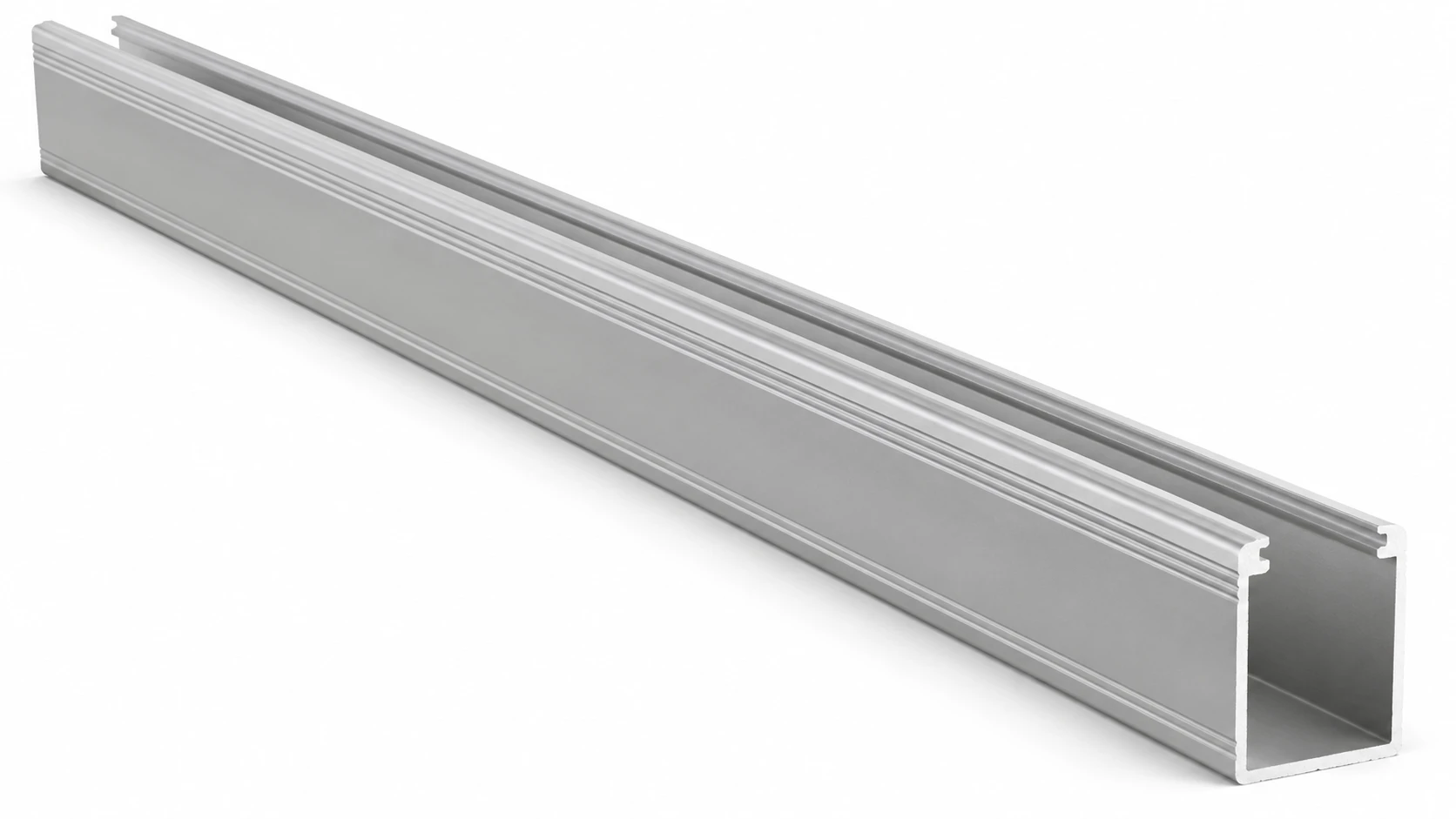

Anodized Aluminum U-Channel

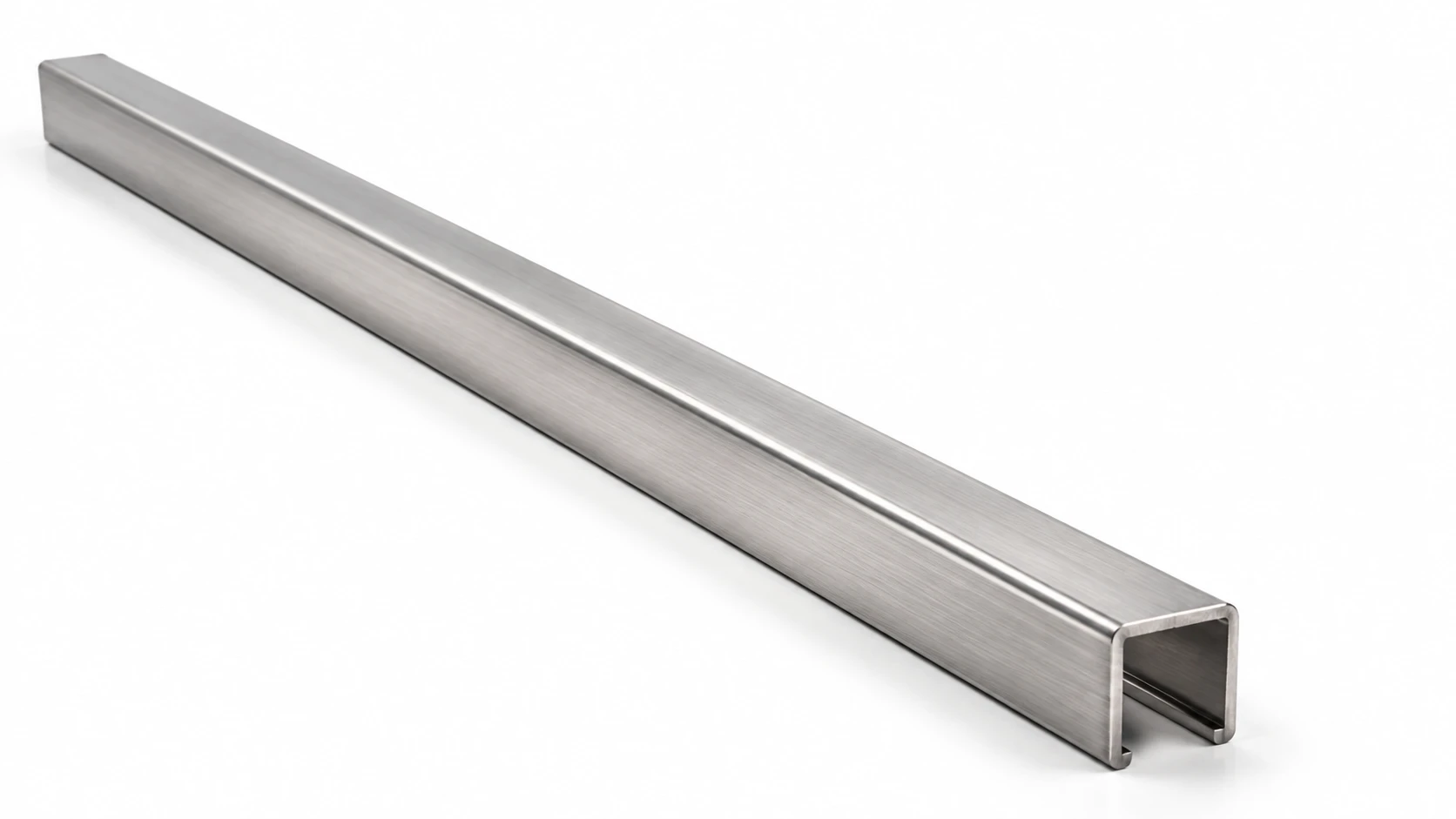

Brushed Stainless
Color options

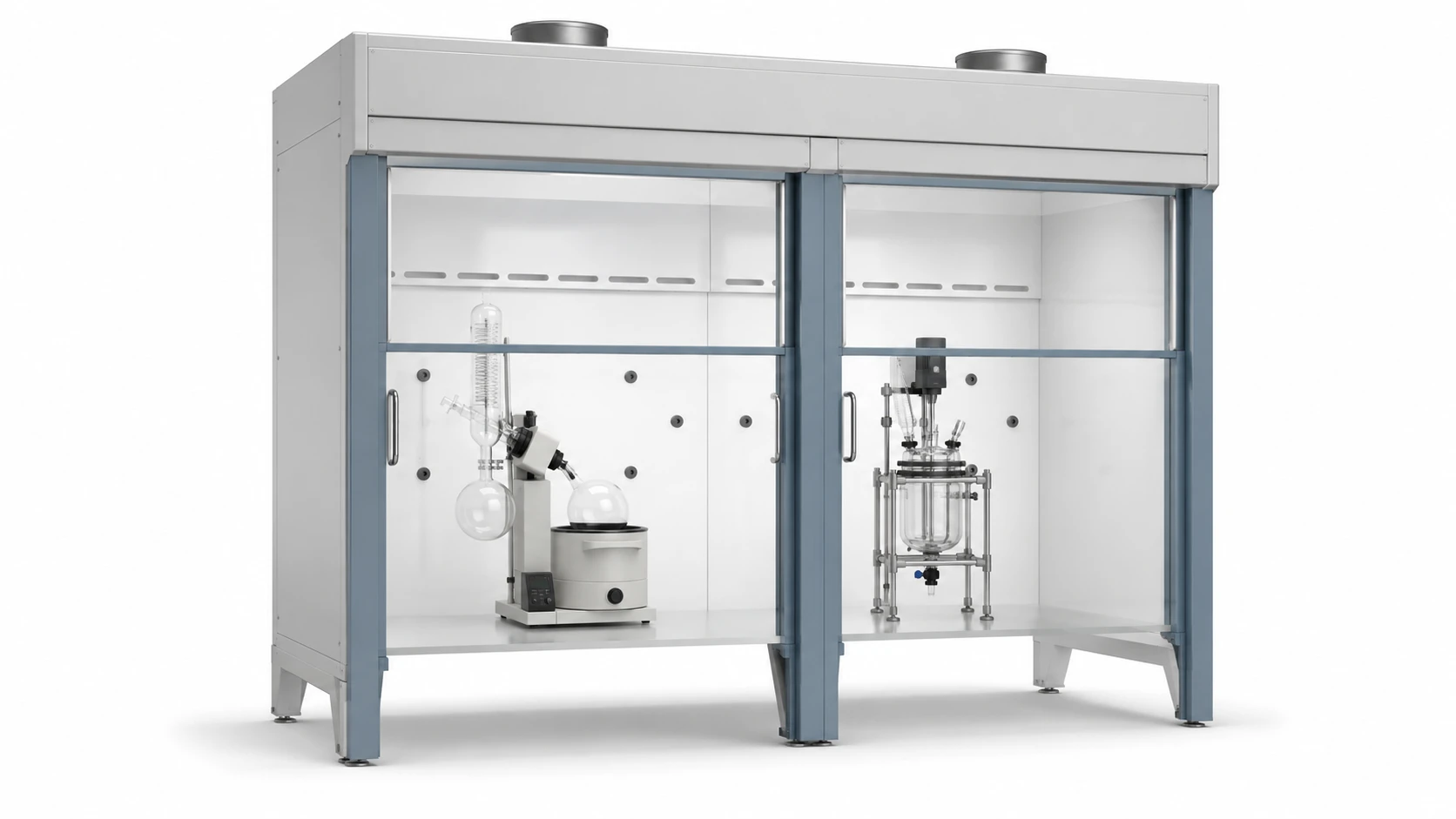

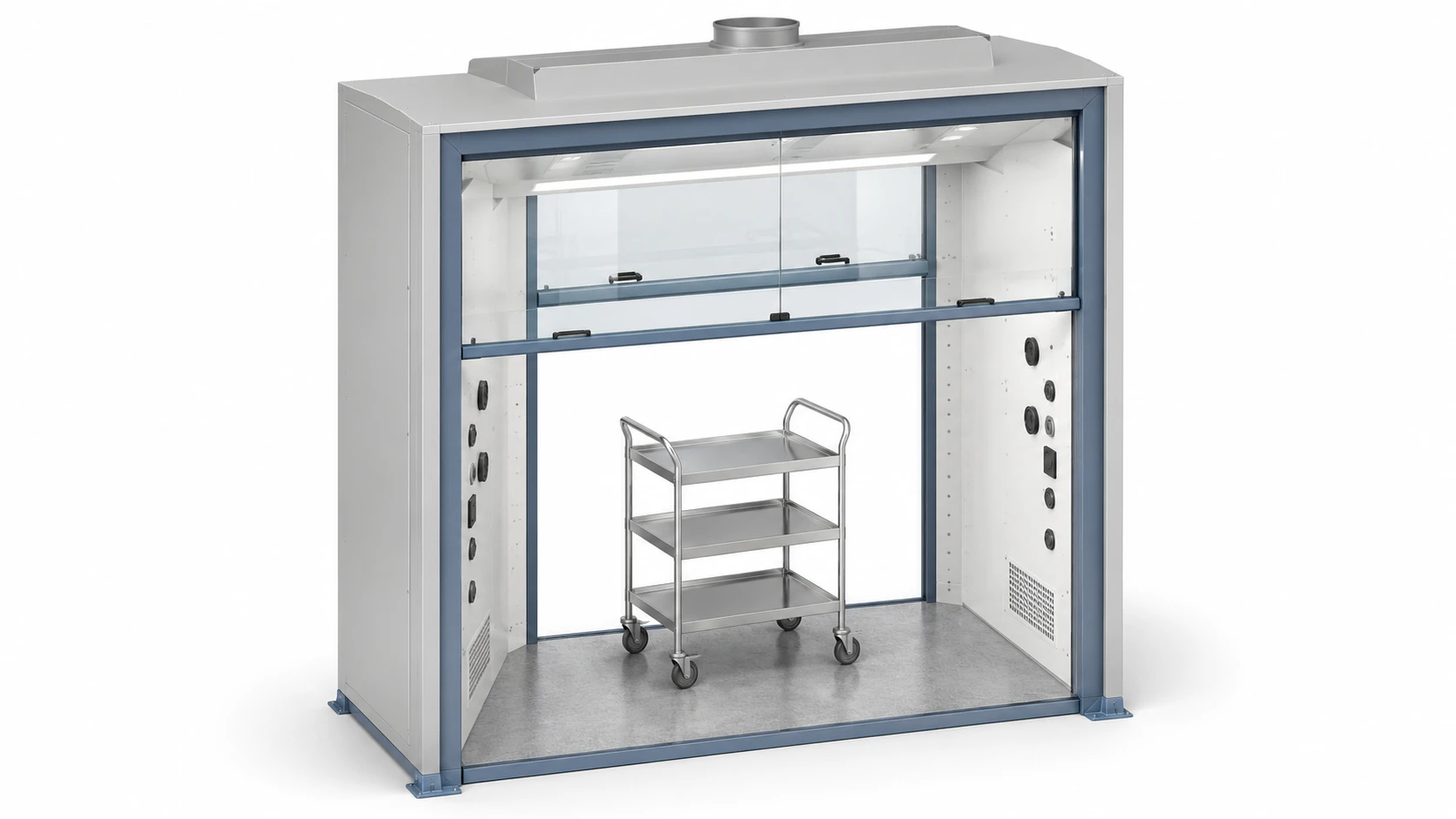

Configurations
Accessories
Gallery

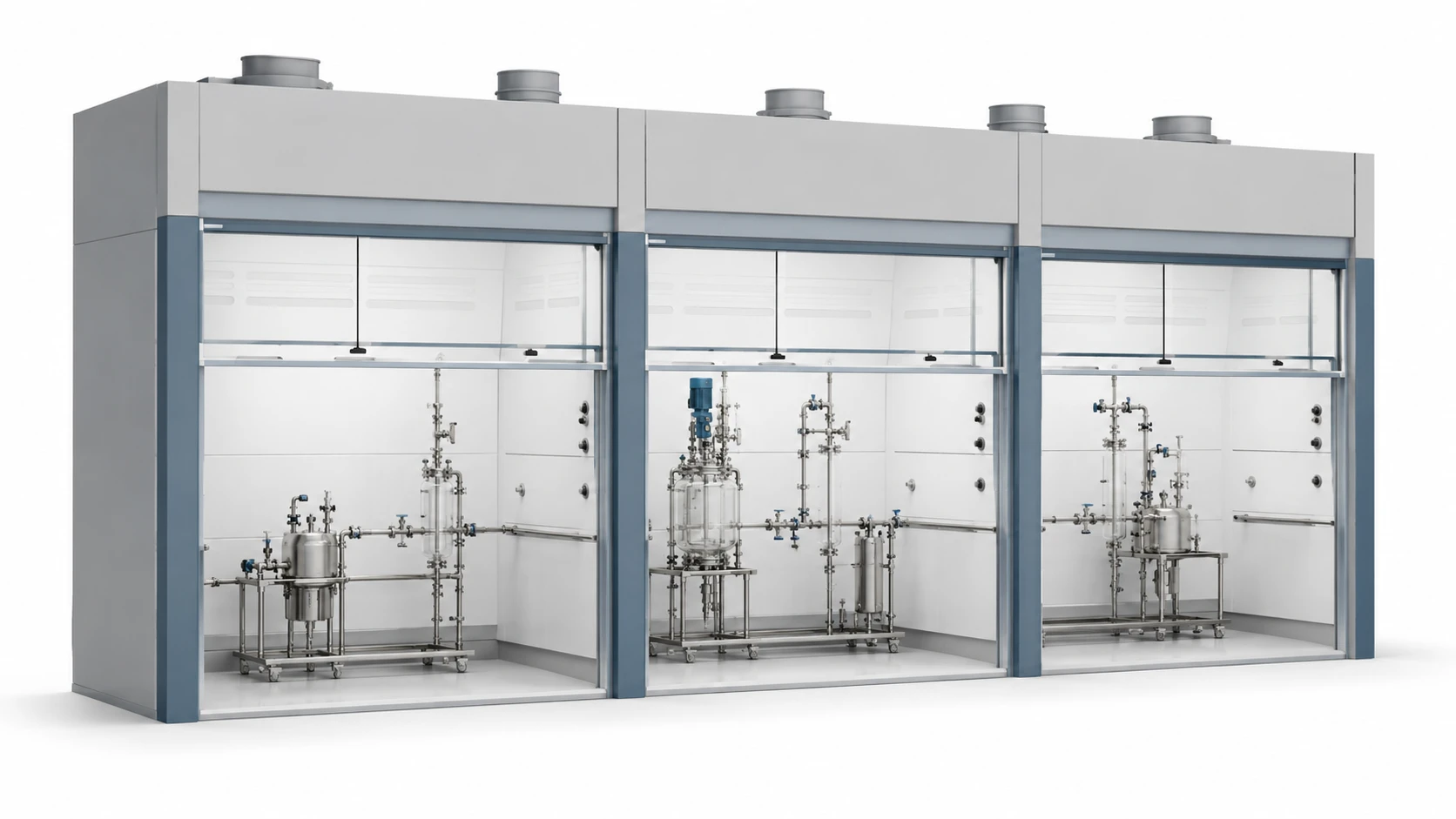

Standard vertical full-height sash walk-in fume hood

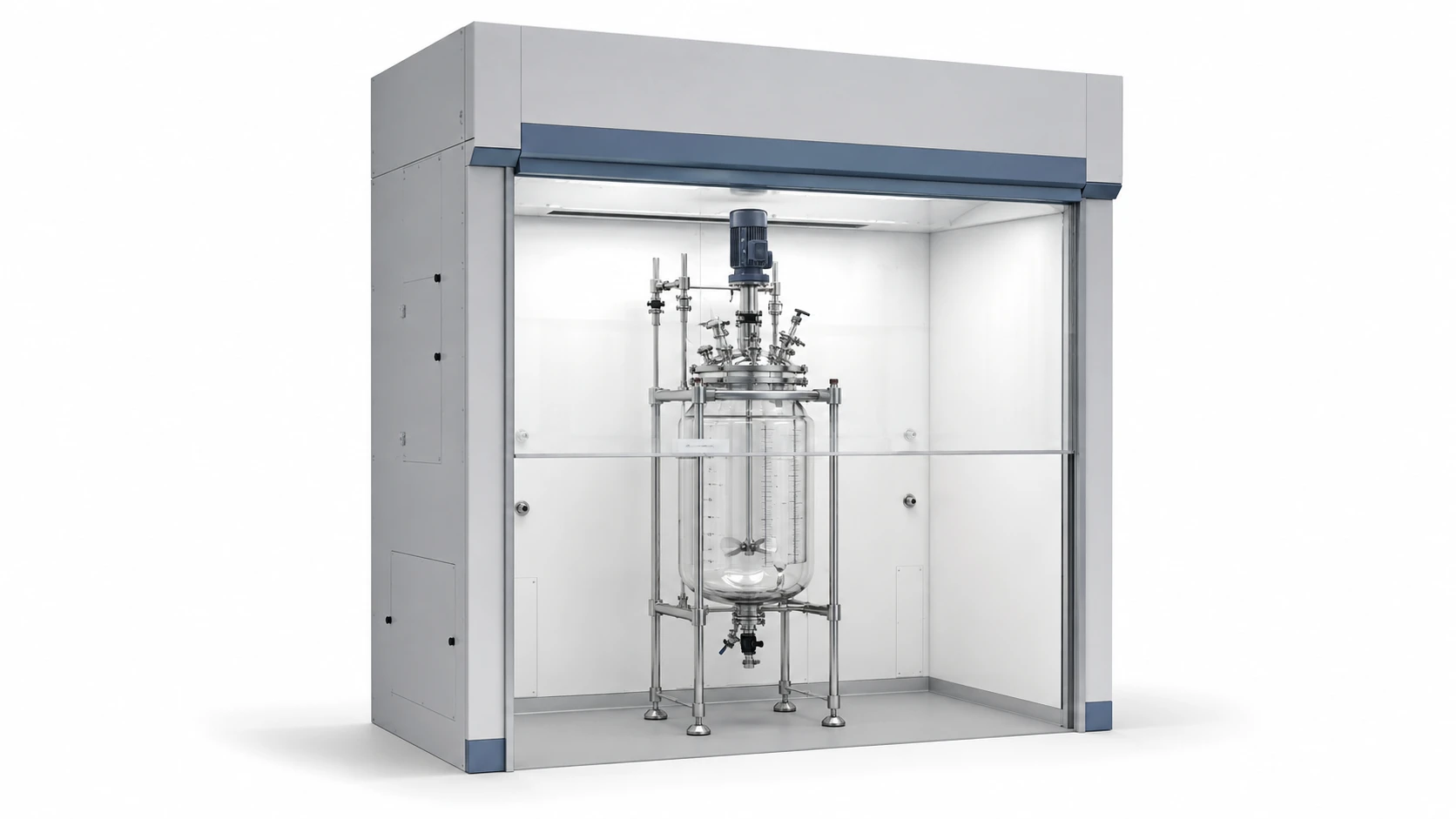

Airtight swing door large walk-in hood for reactor test
PP full anti-corrosion walk-in fume hood for inorganic acid labs
Explosion-proof full set walk-in hood for solvent synthesis workshop
Negative pressure walk-in unit with air shower buffer zone
Related Projects
GEO Europe ISO 7 Modular Cleanroom Project
Shanghai Yantai Technology Co., Ltd. provided an export-oriented ISO 7 modular cleanroom solution for GEO (Green Energy), which was installed inside their factory in Europe as an independent clean experimental workspace.
Jiangsu Institute of Geological Survey Laboratory Project
Shanghai Yantai delivered a comprehensive laboratory engineering solution for the Jiangsu Institute of Geological Survey. The project covered laboratory planning, laboratory furniture manufacturing, ventilation systems, utility integration and engineering installation for a modern geological research laboratory building.
Jiangsu Provincial Water Environment Monitoring Center Laboratory Project
Shanghai Yantai provided a comprehensive laboratory solution for the Jiangsu Provincial Water Environment Monitoring Center. The project included laboratory planning, furniture systems, ventilation systems, utility integration, and installation support for a modern environmental monitoring laboratory.
Related Products
Introducing the Wall Lab Bench, a versatile and space-saving solution designed for laboratories and workshops. Crafted from durable materials, it offers ample workspace and storage for your tools and equipment. Its wall-mounted design maximizes floor space while keeping your essentials organized and accessible. Perfect for research, experiments, or crafting, the Wall Lab Bench enhances productivity in any environment.
Introducing the Wall Lab Bench, a versatile and space-saving solution designed for laboratories and workshops. Crafted from durable materials, it offers ample workspace and storage for your tools and equipment. Its wall-mounted design maximizes floor space while keeping your essentials organized and accessible. Perfect for research, experiments, or crafting, the Wall Lab Bench enhances productivity in any environment.
Introducing the Wall Lab Bench, a versatile and space-saving solution designed for laboratories and workshops. Crafted from durable materials, it offers ample workspace and storage for your tools and equipment. Its wall-mounted design maximizes floor space while keeping your essentials organized and accessible. Perfect for research, experiments, or crafting, the Wall Lab Bench enhances productivity in any environment.
Introducing the Wall Lab Bench, a versatile and space-saving solution designed for laboratories and workshops. Crafted from durable materials, it offers ample workspace and storage for your tools and equipment. Its wall-mounted design maximizes floor space while keeping your essentials organized and accessible. Perfect for research, experiments, or crafting, the Wall Lab Bench enhances productivity in any environment.
Introducing the Wall Lab Bench, a versatile and space-saving solution designed for laboratories and workshops. Crafted from durable materials, it offers ample workspace and storage for your tools and equipment. Its wall-mounted design maximizes floor space while keeping your essentials organized and accessible. Perfect for research, experiments, or crafting, the Wall Lab Bench enhances productivity in any environment.
Introducing the Wall Lab Bench, a versatile and space-saving solution designed for laboratories and workshops. Crafted from durable materials, it offers ample workspace and storage for your tools and equipment. Its wall-mounted design maximizes floor space while keeping your essentials organized and accessible. Perfect for research, experiments, or crafting, the Wall Lab Bench enhances productivity in any environment.
Introducing the Wall Lab Bench, a versatile and space-saving solution designed for laboratories and workshops. Crafted from durable materials, it offers ample workspace and storage for your tools and equipment. Its wall-mounted design maximizes floor space while keeping your essentials organized and accessible. Perfect for research, experiments, or crafting, the Wall Lab Bench enhances productivity in any environment.
Introducing the Wall Lab Bench, a versatile and space-saving solution designed for laboratories and workshops. Crafted from durable materials, it offers ample workspace and storage for your tools and equipment. Its wall-mounted design maximizes floor space while keeping your essentials organized and accessible. Perfect for research, experiments, or crafting, the Wall Lab Bench enhances productivity in any environment.
FAQ
Q: What is the minimum internal height of walk-in fume hood?
Standard internal height ≥2000mm to allow staff to stand and operate freely; can customize ultra-high size for oversized equipment.
Q: Can walk-in fume hood maintain stable negative pressure?
Equipped with differential pressure interlock module, it automatically adjusts exhaust air volume to keep 8–15Pa negative pressure inside, preventing gas leakage outward.
Q: Is walk-in fume hood suitable for flammable organic solvent experiments?
Yes, we provide full explosion-proof version with anti-static liner, explosion-proof fan and control system to eliminate explosion risks.
Q: Can the internal rack and countertop layout be customized?
Fully customizable, we can design multi-layer racks, sink stations, gas service zones according to customer equipment layout.
Q: Does this product support overseas export certification?
Comply with ASHRAE 110, NFPA 45 international standards, can provide CE, explosion-proof certification documents for customs clearance.
