Overview

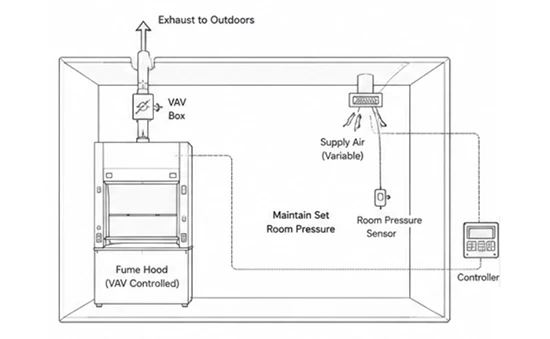

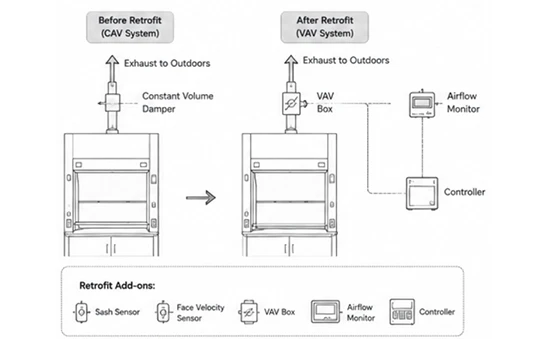

VAV (Variable Air Volume) Fume Hood System is an intelligent ventilation control solution for high-standard laboratories. It maintains constant safe face velocity automatically by real-time adjusting exhaust air volume according to sash opening height, effectively cuts air consumption and reduces air conditioning energy loss.
This system consists of fume hood body, VAV air valve, velocity sensor, PLC control panel and differential pressure linkage module. It fully complies with NFPA 45, ASHRAE 110 and local lab safety standards, and can be linked with central AHU, room pressure monitoring and waste gas treatment equipment to build an interlocked intelligent ventilation system.

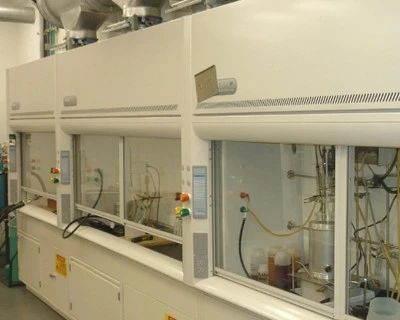

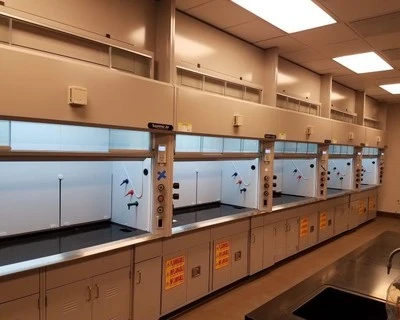

Suitable for chemical synthesis labs, pharmaceutical R&D labs, university teaching labs and multi-unit connected lab zones, the system can be matched with all sizes of 1200/1500/1800mm standard fume hoods, and supports single hood independent control or multi-hood centralized group control.
The system can be configured with

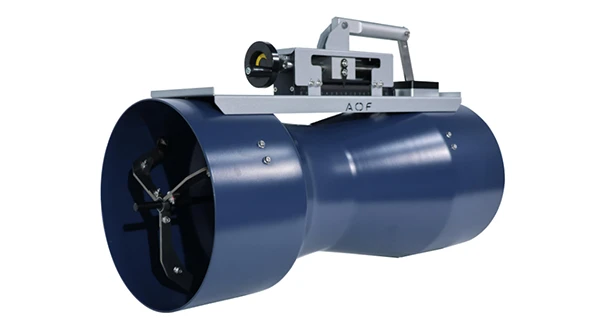

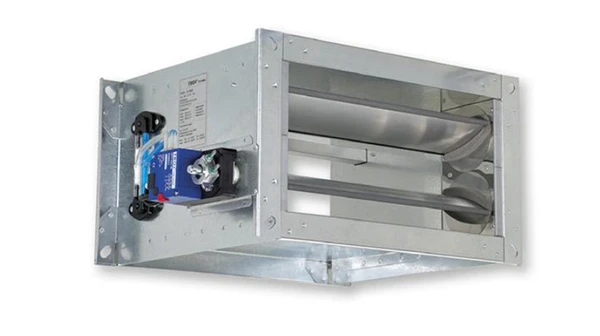

VAV air volume regulating valve
Sash position velocity sensor

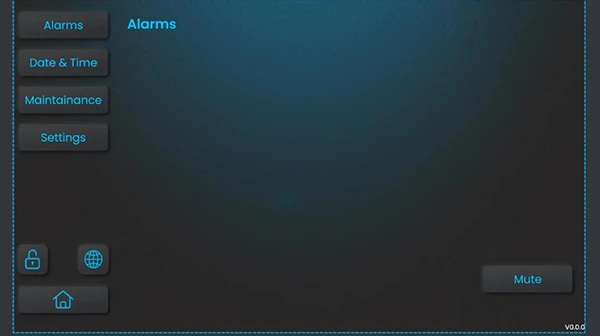

Touch screen PLC control panel Room differential pressure interlock module

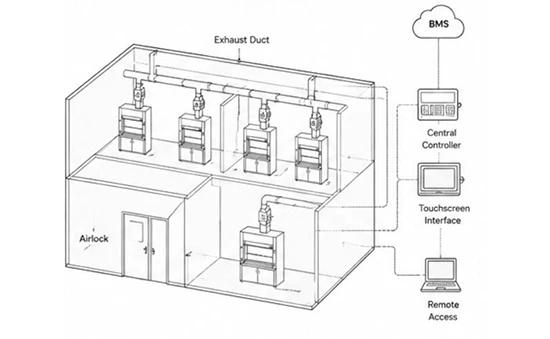

Central building BMS communication module Explosion-proof variable frequency exhaust fan
Remote monitoring cloud platform
Over-temperature & gas leakage alarm unit
Suitable for
Pharmaceutical R&D laboratories
University chemical teaching labs
Multi-connected centralized lab zones High energy consumption long-term operation labs
Hazardous chemical synthesis labs GMP sterile testing laboratories
Overseas export high-standard labs
Specifications
|
Parameter Category |
Standard VAV System |
Customized VAV System |
|
Matching Fume Hood Size |
1200mm / 1500mm / 1800mm |
Custom non-standard width |
|
Design Face Velocity |
0.4–0.6 m/s constant stable |
0.3–0.8 m/s adjustable parameter |
|
Air Volume Adjustment Range |
150–1800 m³/h |
Wide range 100–2500 m³/h ultra-large air volume |
|
Control Mode |
Single independent control |
Group centralized BMS linkage control |
|
Communication Protocol |
Modbus-RTU |
Modbus TCP / Bacnet IP for building automation |
|
Power Supply |
AC220V 50Hz |
AC110V export version available |
|
Alarm Function |
Sash high open / low velocity alarm |
Over-temperature, gas leakage, fan fault multi-alarm |
|
Working Temperature |
10–40℃ |
Explosion-proof module for high solvent volatilization labs |
Materials & Options
Hardware & Handles
Color options
Configurations
Accessories
Gallery
Downloads
Related Projects
GEO Europe ISO 7 Modular Cleanroom Project
Shanghai Yantai Technology Co., Ltd. provided an export-oriented ISO 7 modular cleanroom solution for GEO (Green Energy), which was installed inside their factory in Europe as an independent clean experimental workspace.
Jiangsu Institute of Geological Survey Laboratory Project
Shanghai Yantai delivered a comprehensive laboratory engineering solution for the Jiangsu Institute of Geological Survey. The project covered laboratory planning, laboratory furniture manufacturing, ventilation systems, utility integration and engineering installation for a modern geological research laboratory building.
Jiangsu Provincial Water Environment Monitoring Center Laboratory Project
Shanghai Yantai provided a comprehensive laboratory solution for the Jiangsu Provincial Water Environment Monitoring Center. The project included laboratory planning, furniture systems, ventilation systems, utility integration, and installation support for a modern environmental monitoring laboratory.
FAQ
Q: What is the core energy-saving principle of VAV fume hood system?
It automatically reduces exhaust air volume when the sash is closed/lowered, cuts fresh air loss, and lowers air conditioning heating & cooling energy consumption by 30%–60%.
Q: What safety standards does the VAV system meet?
Comply with ASHRAE 110, NFPA 45 international lab safety standards, also meet domestic GMP and local fire protection codes.
Q: Can multiple VAV fume hoods be connected to the same exhaust fan?

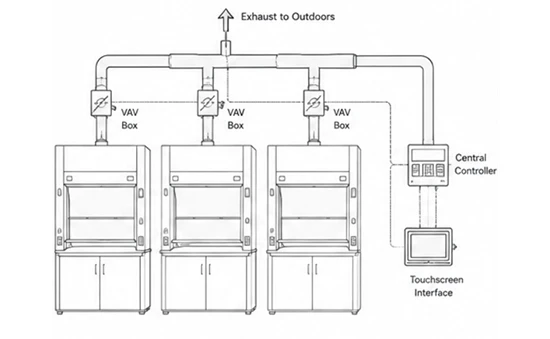

Yes, match with variable frequency fan and group control module to realize automatic air volume balance linkage.
Q: Is the VAV system available for export to Europe and America?
Support AC110V power supply, Bacnet IP / Modbus TCP international communication protocols, and provide CE explosion-proof certification documents.
Q: Does the VAV system support remote real-time monitoring?
Equipped with cloud gateway option, users can view real-time wind speed, energy consumption and fault alarms via mobile phone or PC.
